The attachment weight for compact tractors, ATV’s and UTV’ is a limiting factor in choosing the right attachment for your needs.

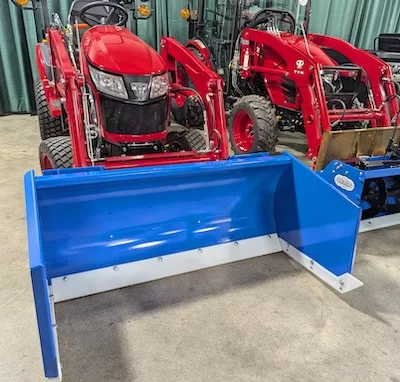

 We have engineered a lighter weight yet strong and durable box plow for residential and recreational use. Our products are manufactured from graded steel coming from foundries located in North America only.  We do not use imported recycled ungraded steel in any of our products.
The R series is designed for mounting on ATV’s UTV’s, sub compact tractors and compact tractors up to 4000 lb or 40 hp. and under.

Push snow, leaves and brush, level gravel, sand asphalt regrind, top soil and compost.
The R series box plow is equipped with a standard skid steer quick hitch attachment. An optional mini skid steer quick attachment is available.
The mini skid steer option is a bolt on connection for use with your sub-compact tractors, ATV’s and UTV’s quick attach under frame mounting systems.
This feature allows an owner to use it with both standard and mini skid steer equipped power units.
The side skid shoe’s are adjustable in both steel and optional UHMW plastic.
The end plates bolt-on which give you the option using the blade as a straight blade or box pusher.


The R series comes in 4 sizes:
Model Clearing Width Weight
R 4
4 ft.  – 120 cm
147 lb. / 67 kg.
R 5
5 ft.   - 150 cm  160 lb. / 73 kg.
R 6 6 ft.  -  180 cm
171 lb. / 78 kg.
R 7 7 ft.  – 210 cm
185 lb. / 85 kg.


Dealer inquiries are invited please contact us at salesandservice@cqmfg.com. For more information, click here.
